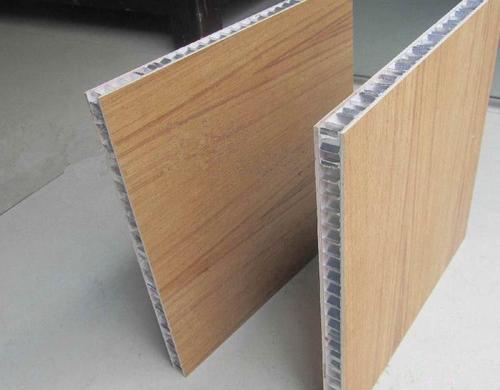

Wood grain color coated aluminum honeycomb panel

Wood grain color coated aluminum honeycomb panel is a plate made by two aluminum panel panels firmly adhered on both sides of a thick honeycomb core material. Honeycomb panel series has rich product specifications and can provide a variety of panel shapes, especially suitable for large panel applications. Its unique charm lies in the larger scale and smoother surface of the board.



Wood grain color coated aluminum honeycomb panel mainly uses 3003H24 aluminum-magnesium alloy series or 5052H24 aluminum-magnesium alloy series aluminum plate as the base material, the panel thickness is 0.7-1.0mm fluorocarbon roller coated plate, the bottom plate thickness is 0.5-1.0mm, and the total thickness is 10-25mm. The material of the sandwich core is hexagonal 3003H24 type honeycomb core, and the thickness of the aluminum foil is 0.04-0.06mm. It can be customized to meet different designs and needs to produce aluminum honeycomb core.
Product performance characteristics of wood grain color coated aluminum honeycomb panel:
1. Super flat and strong compression resistance;
2. Light weight, good safety, high strength and rigidity;
3. Sound insulation, heat insulation and shock resistance;
4. Tailor-made special-shaped processing can be processed into triangle, trapezoidal, S-arc, folded plate and other special-shaped processing in the factory;
5. No color difference, fire retardant, anti-deformation, long service life;
6. It is easy to cooperate perfectly with lamps, sprinklers, air conditioners and other equipment;
7. Easy to install and maintain.
Scope of application:
Wood grain color coated aluminum honeycomb panel are widely used in office buildings, clubs, bars, airports, high-end KTV, supermarkets, shopping malls and other public places.
